Name：TWT-The torque motor

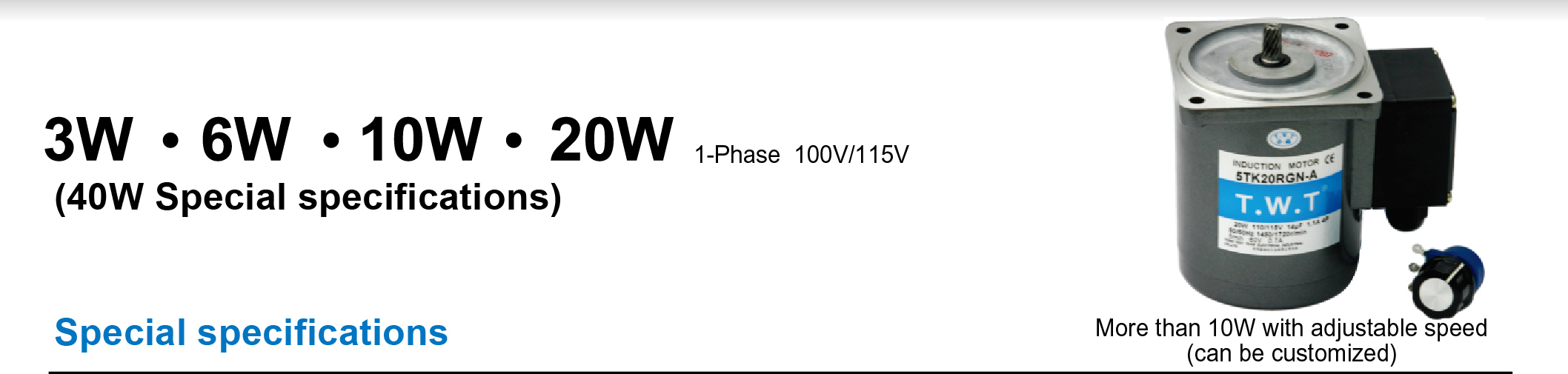

3W·6W·10W·20W | Single | phase | 110V/115V/220V |
(40W Special specification |
Name of motor | Limited rated time (mins) | Voltage V |
Frequency Hz | Resistance value setting KΩ | Starting torque gcm | Maximum output W | Revolution of max output rpm | Torque of max output gcm | Current of max output A | Input power of max output W | Capacitors | |
Capacity F | limited voltage VAC | |||||||||||
2TK3(R)GN-A 2TK3(R)A-A | 5 Continuous |
1 phase 100 |
50 | 0 About 150 | 700 220 | 3 0.8 |
750 | 390 110 | 0.5 0.3 | 50 18 |
7.0
6.0 |
200 |
5 Continuous |
1 phase 100 |
60 | 0 About 130 | 700 160 | 3.5 0.6 |
900 | 380 70 | 0.5 0.3 | 50 18 | |||
4TK10(R)GN-A 4TK10(R)A-A | 5 Continuous |
1phase 100 |
50 |
About 12 | 2000 550 | 10 |
750 | 1300 390 | 0.90 0.50 | 50 30 |
12.0 |
200 |
5 Continuous |
1 phase 100 |
60 | 0 About 9 | 2300 480 | 2.2 | 900 | 1450 240 | 0.95 0.55 | 90 32 | |||

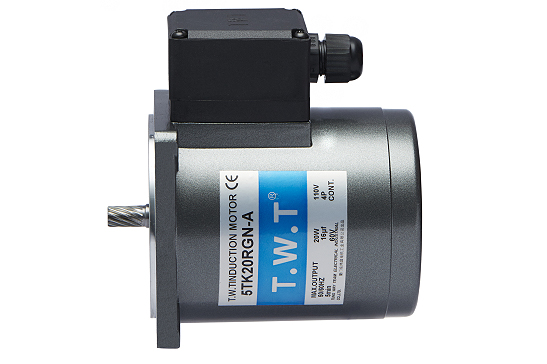

5TK20(R)GN-A 5TK20(R)A-A | 5 Continuous | 50 | 0 About12 | 3000 630 |
20 4.0 |
750 | 2600 520 | 1.30 0.70 | 125 38 |
18.0 |
220 | |
5 Continuous |
60 | 0 About 9 | 3700 580 | 25 4.0 |
900 | 2710 425 | 1.5 0.85 | 150 40 | ||||
● The error of resistance value is±10%
General specification(at common temperature and humidity,rated time running)
Project | Specifications |
Insulation resistance | DC 500V high resistance meter was used to measure the value of the motor over 100MΩ |
Insulation withstand voltage | Insulation voltage-resistant coil,shell to 50Hz,1.5 kv 1KV add a minute of the Kusaka and no abnormal. ()4TK,5TK models. |
The temperature rises | the figure of temperature would be below 55°by thermometer at running |
Insulation grade | Species E(120°℃) |
Temperature range for use | -10℃~+50℃ |
Use the humidity range | Less than 80%(no dew) |
Name of motor | Limited rated time (min) | Voltage (V) | Frequency (Hz) | Starting torque (gem) | Max output (W) | Speed of max output (rpm) | Torque of max output (gcm) | Current of max output (A) | Input of max output (W) | Capacitors | |
F | VAC | ||||||||||
2TK3GN-A 2TK3A-A | 5 Continuous | 100 60 |
50 | 700 250 | 3 |
750 | 390 130 | 0.5 0.3 | 50 18 |
4.0 |
250 |
5 Continuous | 100 60 |
60 | 700 250 | 3.5 1.2 |
900 | 380 130 | 0.5 0.3 | 50 18 |
4.0 | ||
3TK6GN-A
3TK6A-A | 5 Continuous | 100 60 |
50 | 1400 550 | 6 2.5 |
750 | 780 320 | 0.75 0.45 | 75 27 |
8.0 |
250 |
5 Continuous | 100 60 |
60 | 1400 450 | 7.5 2.7 |
900 | 820 290 | 0.70 0.45 | 75 27 |
6.0 | ||
3TK6GN-AUL 3TK6A-AuL | 5 Continuous | 100 60 |
50 | 1400 530 | 6 2.3 |
750 | 780 300 | 0.58 0.34 | 55 19 |
8.0 |
250 |
5 Continuous | 115 100 60 |
60 | 1500 1350 450 | 8 7 2.5 |
900 | 870 760 270 | 0.62 0.53 0.34 | 67 51 20 |
6.0 | ||
4TK10GN-A
4TK10A-A | 5 Continuous | 100 60 |
50 | 2200 750 | 10 3.5 |
750 | 1300 460 | 0.9 0.5 | 80 30 |
12.0 |
250 |
5 Continuous | 100 60 |
60 | 2100 700 | 12 3.5 |
900 | 1300 380 | 0.85 0.5 | 85 30 |
8.0 | ||
4TK10GN-AUL 4TK10A-AuL | 5 Continuous | 100 60 |
50 | 2100 700 | 10 3.5 |
750 | 1300 460 | 0.70 0.41 | 65 24 |
12.0 |
250 |
5 5 Continuous | 115 100 60 |
60 | 1950 1500 500 | 12 9 2.8 |
900 | 1300 1000 310 | 0.66 0.55 0.32 | 70 53 19 |
8.0 | ||
5TK20GN-A
5TK20A-A | 5 Continuous | 100 60 |
50 | 3500 1100 | 20 6 |
750 | 2600 780 | 1.1 0.7 | 110 42 |
16.0 |
250 |
5 Continuous | 100 60 |
60 | 3000 1000 | 20 6 |
900 | 2200 650 | 1.0 0.7 | 110 42 |
14.0 | ||
5TK20GN-AuL
5TK20A-AuL | 5 Continuous | 100 60 |
50 | 3400 1100 | 20 6 |
750 | 2500 780 | 0.96 0.54 | 96 32 |
16.0 |
250 |
5 5 Continuous | 115 100 60 |
60 | 3500 2700 900 | 23 18 26 |
900 | 2500 2500 650 | 1.0 0.82 0.49 | 110 82 29 |
14.0 |
250 | |
·UL specifications identify motor with built-in overheat protector,in addition to the use of capacitors will vary according to the power supply,so please specify the power supply when ordering.
General specification (at common temperature and humidity,rated time running)
Project | Specifications |
Insulation resistance | DC 500V high resistance meter was used to measure the value of the motor over 100MΩ |
Insulation withstand voltage | Insulation voltage-resistant coil,shell to 50Hz,1.5 kv 1KV add a minute of the Kusaka and no abnormal. ()4TK,5TK models |
The temperature rises | The figure of temperature would be below 55°by thermometer at running |
Insulation grade | Species E(120℃) |
Temperature range for use | -10℃~+50℃ |
Use the humidity range | Less than 80%(no dew) |
